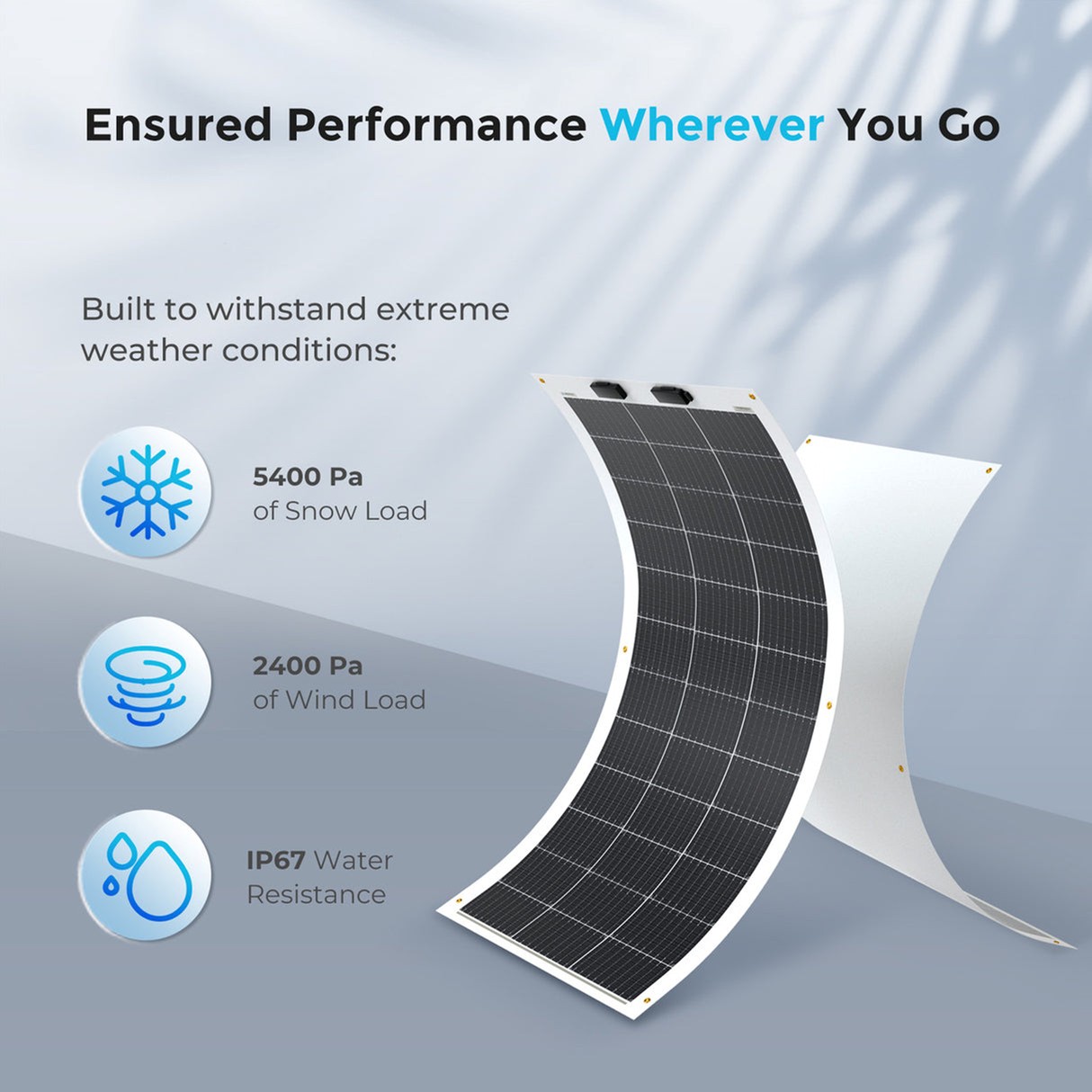

100W Flexible Monocrystalline Solar Panel (White)

Key Features: The Renogy 100W 12V Flexible Monocrystalline Solar Panel is the most convenient panel to convert your leisure vehicle from an energy dependant vehicle to an energy producing location. Potential Uses: The solar panel can be primarily used on off-grid applications that include caravans, trailers, RVs and any other curby surfaces. Extreme flexibility. Ultralight and extremely durable design. Quick and inexpensive mounting. Ultra thin lamination. No hot spots guaranteed. Electrical Data: Maximum Power at STC: 100W. Optimum Operating Voltage: 20.7V. Optimum Operating Current: 4.84A. Open Circuit Voltage: 24.4V. Short Circuit Voltage: 5.16A. Module Efficiency: 15.7%. Maximum System Voltage: 600V DC. Maximum Series Fuse Rating: 15A. Thermal Characteristics: Operating Temp Range: -40°C to 80°C. Nominal Operating Cell Temperature: 45±2°C. Temperature Coefficient of Pmax: -0.38%/°C. Temperature Coefficient of Voc: -0.29%/°C. Temperature Coefficient Isc: 0.05%/°C. Junction Box: IP Rating: IP67. Number of Diodes: 2 Diodes. Output Cables: 12AWG 700mm. Mechanical Data: Solar Cell Type: Monocrystalline. Number of cells: 36. Dimensions: 1093 x 582 x 3mm. Weight: 2.4kg. Application Class: Class A. Frame: None. Connectors: Solar Connectors. Fire Performance: Type 1. Solar Connectors: Rated Current: 30A. Maximum Voltage: 1500V DC. Maximum AWG Size Range: 12AWG. Temperature Range: -40°C to 80°C. IP Rating: IP67.
