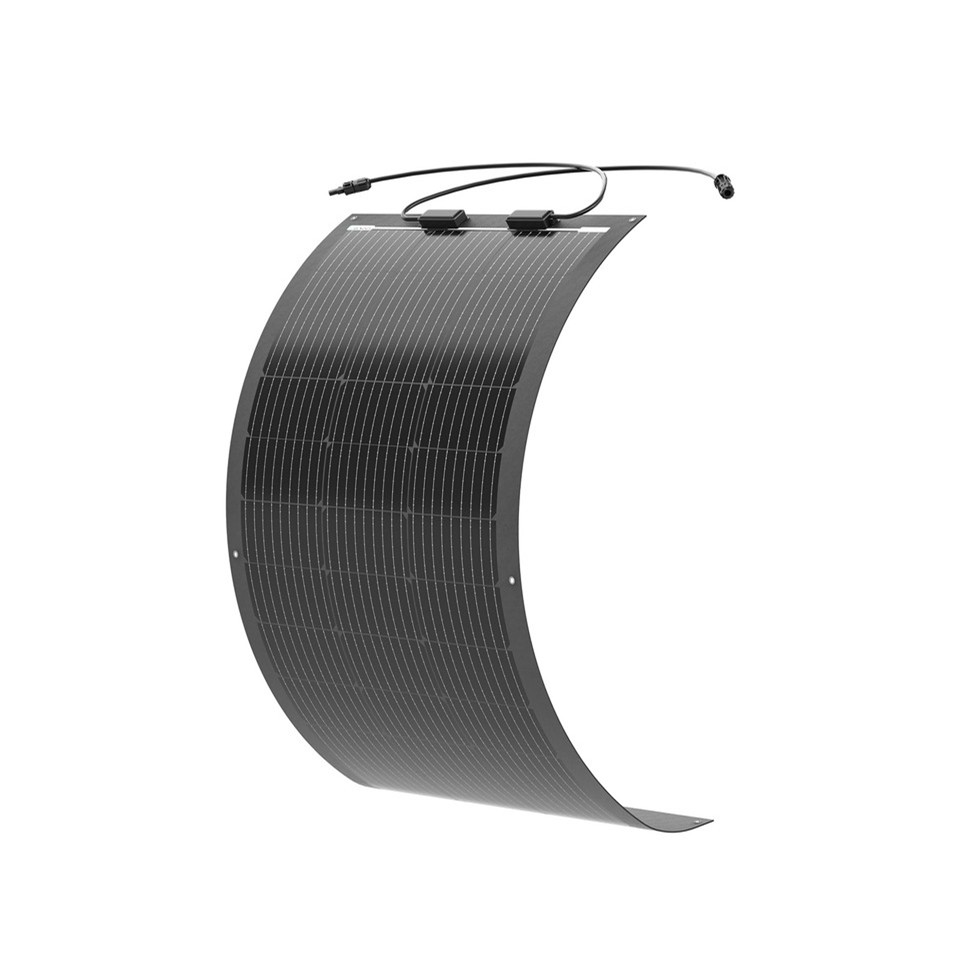

100W Flexible Monocrystalline Solar Panel (Black)

Key Features: The Renogy 100W Lightweight Monocrystalline Solar Panel achieves compact thickness and extreme lightweight. This solar panel features high efficiency (PERC) monocrystalline silicon solar cells. The product promotes renewable energy deployment. Potential Uses: The Renogy 100W Lightweight Solar Panel is primarily designed for off-grid solar power systems in transportation applications. Applications include caravans, trailers, RVs and other curvy surface structures. Extremely lightweight. Reliable quality & durable design. Quick and inexpensive mounting. Ultra thin lamination. No hot spots guaranteed. Electrical Data: Maximum Power at STC: 100W. Optimum Operating Voltage: 19.4V. Optimum Operating Current: 5.20A. Open Circuit Voltage: 23.5V. Short Circuit Voltage: 5.51A. Module Efficiency: 15.7%. Maximum System Voltage: 600V DC UL. Maximum Series Fuse Rating: 15A. Thermal Characteristics: Operating Temp Range: -40°C to 80°C. Nominal Operating Cell Temperature: 45±2°C. Temperature Coefficient of Pmax: -0.38%/°C. Temperature Coefficient of Voc: -0.29%/°C. Temperature Coefficient Isc: 0.05%/°C. Junction Box: IP Rating: IP67. Diode Type: HY 10SQ050. Number of Diodes: 2 Diodes. Output Cables: 12AWG 700mm. Mechanical Data: Solar Cell Type: PERC Monocrystalline. Number of cells: 36. Dimensions: 1093 x 582 x 3mm. Weight: 2.4kg. Application Class: Class II. Frame: None. Connectors: Solar Connectors. Fire Performance: Type 1. MC4 Connectors: Rated Current: 30A. Maximum Voltage: 1500V DC. Maximum AWG Size Range: 12AWG. Temperature Range: -40°C to 80°C. IP Rating: IP67.
