CORE 12V 3000W Inverter Charger

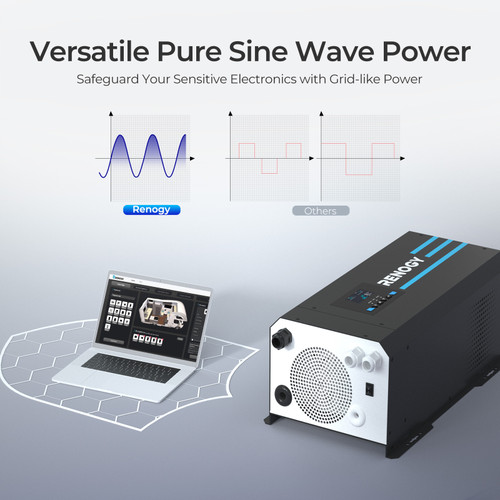

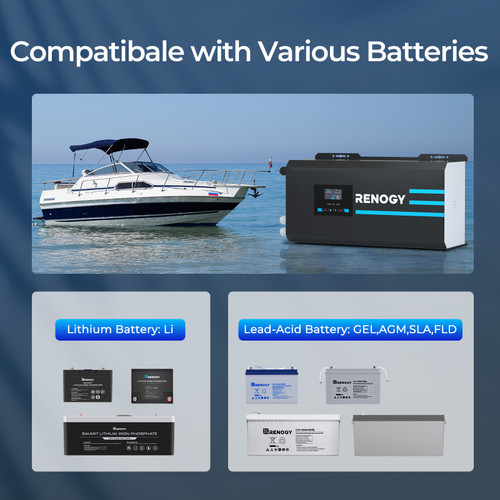

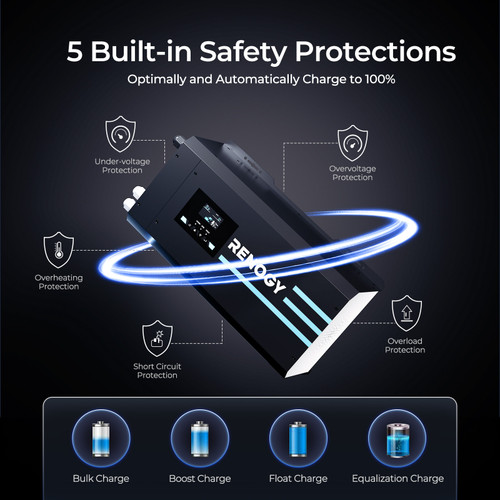

The Renogy PCL series inverter-charger combines an inverter and battery charger with an automatic transfer switch into one complete system. Featuring a 3-stage battery charging mode when connected to utility AC power, the PCL series inverter charger can meet powerful demand needs as well as charge your battery bank. As a power supply, it is capable of producing cleaner, smoother and more reliable electricity for user’s electronic needs. Take full advantage of the multiple features. KEY FEATURES * Robust and sleek design * LCD and LED display used to view inverter status and programming features * Offers high quality waveform with little harmonic distortion * 4-stage battery charger with configurable charging current * 8 Pre-set battery voltages including Lithium; User-defined option available * Automatic generator start option * Peak efficiency >90% * Multiple electronic protections GENERAL SPECIFICATIONS * Product Code: R-INVT-PCL1-30123S * Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER * Operating Temperature Range: 0° to +40°C * Storage Temperature Range: -30°C to +70°C * Humidity: 0% to 95% * Noise: <50dB * Certifications: ETL listed to CSA Standard, C22.2 No. 107.1 and UL458 with marine supplement INVERTER SPECIFICATIONS * Rated Output Power: 3000W * Surge Power (1 sec): 9000W * Surge Power (3 sec): 4500W * Surge Power (10 sec): 3600W * Nominal Output Voltage (RMS): 120V AC (100 ~ 120V AC, 5V Intervals) / 230V AC (200 ~ 240V AC, 10V Intervals) * Output Frequency: 50Hz ± 0.3Hz or 60Hz ± 0.3Hz * Output Wave Form: Pure Sine Wave * Output Overload: 105% < Load < 120% ± 10% : Fault (Turn off output after 10 sec) / 120% < Load < 150% ± 10% : Fault (Turn off output after 3 sec) / 150% < Load < 10% : Fault (Turn off output after 1 sec) * Nominal Input Voltage: 12V DC * Input Voltage Range: 10 ~ 16V DC ± 0.3V DC * Low DC Warning Voltage: 10.5V DC ± 0.3V DC * Low DC Cut-off Voltage: 10V DC ± 0.3V * Short Circuit Protection: Software Protection * Nominal Efficiency: >90% Peak * No Load Power Consumption: Normal: <30W / Power Saving: <15W CHARGER SPECIFICATIONS * Nominal Input Voltage: 120V AC / 230V AC * Input Voltage Range: 90 – 138V AC / 155 – 275V AC * Input Frequency Range: 40Hz – 70Hz * Input Wave Form: Sine Wave (Utlilty/Generator) * Power Factor: 0-9 – 1 * Optimal Efficiency: >85% * Output Current: 5 – 75A / Configurable, 5A intervals * Short Circuit Protection: Circuit Breakers * Output Overload: 120% < Load < 150% ± 10% : Fault (Turn off output after 60 sec) / 150% < Load ± 10% : Fault (Turn off output after 1 sec) * Over Charge Protection Shutdown: 16.0V for 12V DC TRANSFER SWITCH SPECIFICATIONS * Transfer Time: ~10ms * Line Mode Efficiency: >95% * Transfer Relay Rating: 30A Maximum Bypass
