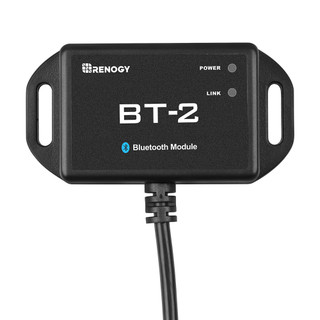

RENOGY BT-2 Bluetooth Module

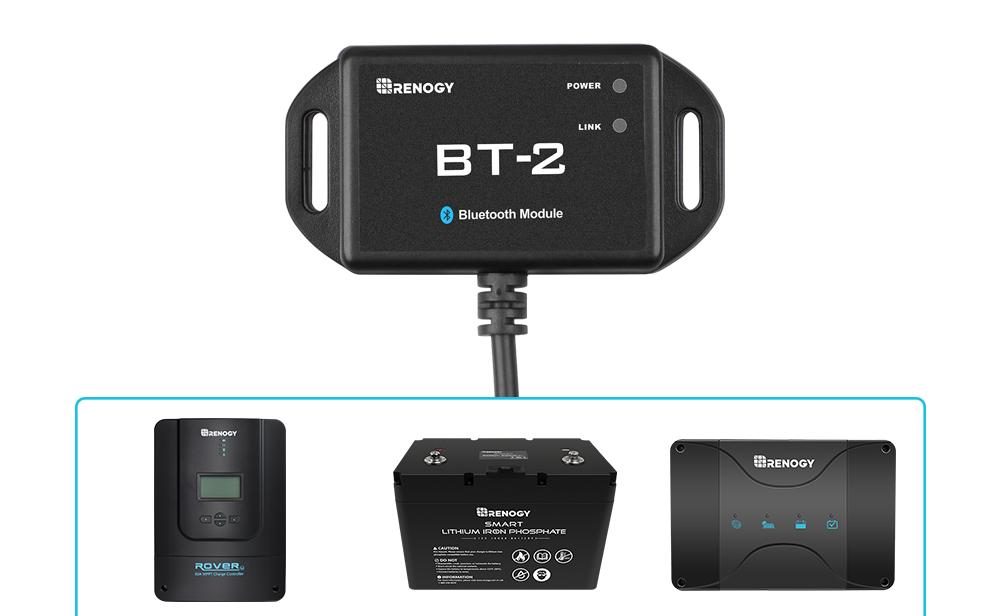

The Renogy BT-2 is a new generation of Bluetooth module for Renogy solar charge controllers, smart lithium batteries, dual input DC to DC and inverter chargers. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smart phone app. * Wirelessly monitor and control compatible solar charge controllers via Bluetooth * Connects to our user-friendly smart phone app, Renogy DC Home, to keep track of your system * Embedded exclusive Bluetooth chip with high eddiciency and low energy consumption * Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication * Powered directly through RJ45 communication port * Signal range up to 25m * Two LED lights indicate the power and Bluetooth connection condition SPECIFICATIONS: * Product code: RCM-BT2 * Model: BT-2 * Standby Power Consumption: 0.04W * Operating Power Consumption: 0.05W * Communication Range: ≤ 25m * Serial Baud Rate: Fixed Baud Rate 9600bps * Communication Protocol: RJ485 * Port Type: RJ45 * Cable Length: 5m * Installation Dimensions: 67.3 ф 3.5mm * Operating Temperature: -20°C to +85°C * Protection Grade: IP54 *Compatible Models: All Renogy Products with RJ45 Port
