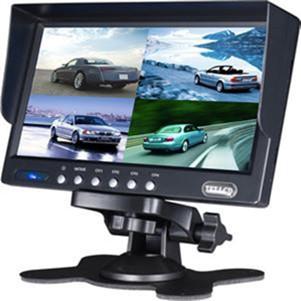

RCS704M – 7″ Quad Split Screen Monitor. 7″ high digital new panel. 16:9 image. PAL/NTSC System. Resolution: 800 x RGB x 480. 4 video imputs (only 4 PIN connector). Single/Split/Quad view selectable. 4 way Trig function. Trigger priority: CAM 2>CAM 1>CAM 3>CAM 4.
High-low voltage protection & short circuit protection. Brightness: 300 cd/m². Contrast: 400:1. View angle: L/R:70°; Up:50°; Down: 70°. 8 language OSD. Remote control. Power supply: DC 9~32V. With sunshade. Dimensions: 17.5 x 11.4 x 4.7cm (with shade).
RCS70CM – Camera-Mirror/non-mirror image (adjustable on camera). Image sensor: 1-3″ SONY CCD. Resolution: 976*582. View angle: 120°(D). Power voltage: 12V DC. IP Rating: IP68. IR Rating: 18 LEDs. Option: CMOS Sensor.
Weight: 465g. Connector: 4 PIN locking. RCSC10M/RCSC20 Extension cables. 10/20 meter extension cable. Female head locking plug. Mail tail locking plug 4 PIN coaxial cable. With rubber wrapper to protect connectors.
