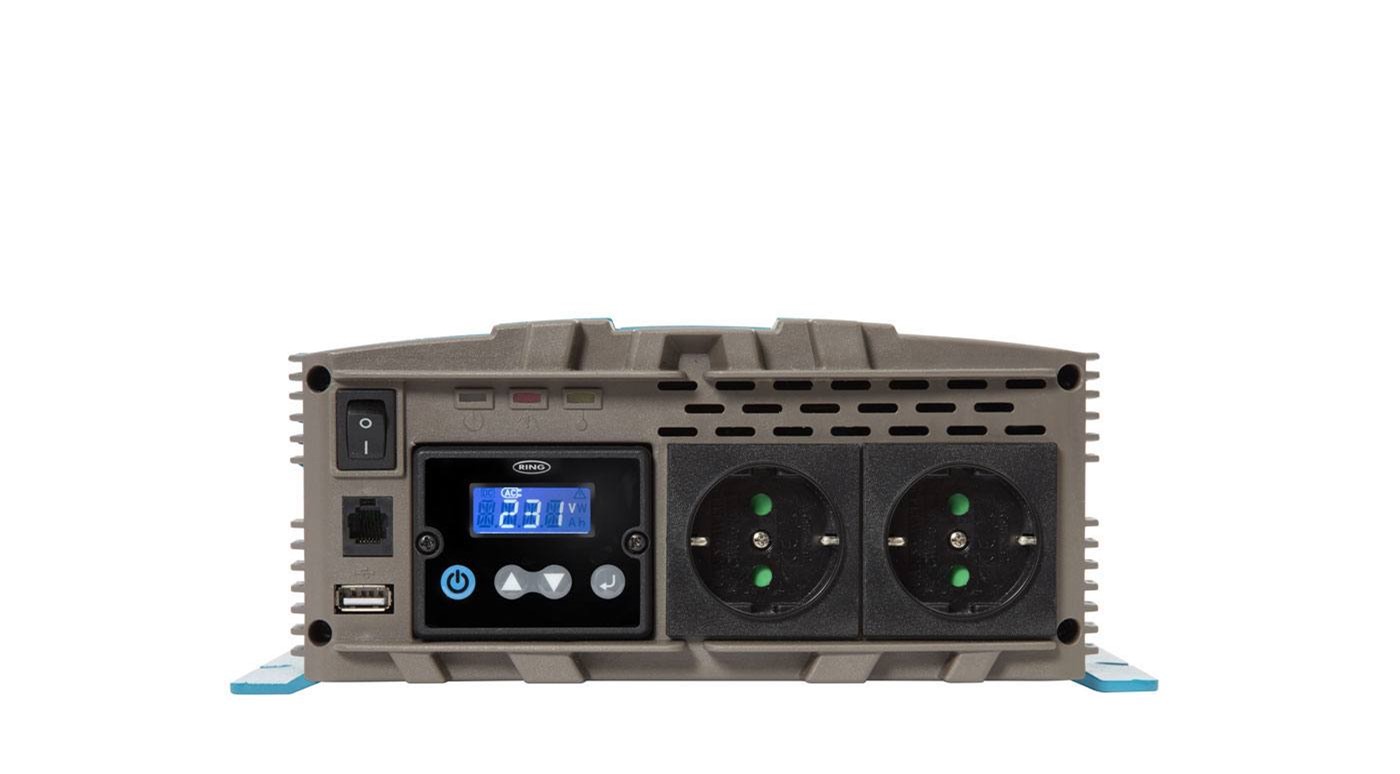

PowerSourcePure 1000w PSW Inverter

The PowerSourcePure 1000w PSW Inverter is a Professional 1000-watt pure sine wave inverter, that converts 12-volt battery power into useful 230-volt AC mains power – ideal for remote applications such as service vehicles. Pure sine wave inverters provide an extremely pure output, which replicates the normal domestic mains supply. This makes them suitable for powering products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers, and sensitive electronics such as laptops and audio/visual equipment.

SKU: REINVPA10 Category: Inverters Tag: Ring

An additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter’s battery current, allowing indication of time remaining before battery is flat to help improve power management.

Highly efficient, running at 90% efficiency at 75% load, and with minimal footprint to reduce installation space. Includes a power saving mode to reduce battery drain when not in use. All models are fully protected against overload, over temperature and low/high voltages.

PowerSourcePure inverters are E-Marked and tested and certified to the relevant EMC and LVD Directives. Voltage – 12V DC Input 230V AC Output. Wattage – 1000w. E Regulation – 10-EMC. Continuous power rating (up to 12hrs) – 1000w. Peak power rating (up to 200ms) – 2000W. Output voltage – Adjustable 200/220/230/240V ± 10%. Output frequency – Adjustable 50/60Hz. Waveform – Pure Sine Wave (PSW). Input voltage range – 9.5-16.5V (12V nom). Input current – 59A. Efficiency at 75% load – 90%. No load current draw – <1.5A. Power saving mode – Yes. Power saving current – 0.2A. Low battery alarm sounds – 10-11.5V ± 0.5V. Low battery shut down – 9.5-11V ± 0.5V. Thermal protection – 60°C to -10°C. USB – 2.1A. Display panel port – Yes. Current sensor port – Yes.
